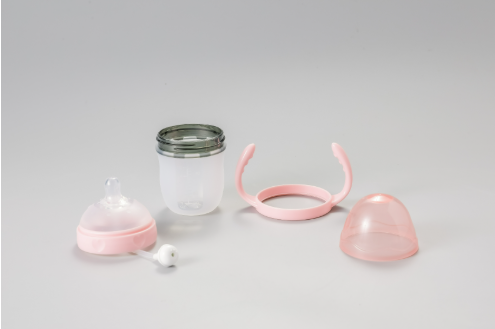

Silicone rubber compression molding is widely used for medical, automotive,
consumer electronics, and industrial components where reliability and
consistency are critical. While much attention is often given to material
selection and mold design, long-term product success depends on having a
robust quality system that spans design, process, and production.
This article explains how to build a practical quality system for silicone rubber compression molding, covering DFM review, process validation, inspection planning, and continuous improvement. It is intended for engineering and quality teams who need a structured approach rather than ad-hoc defect fixing.
In silicone molding projects, defects are rarely caused by a single factor. More often, they result from interactions between material behavior, mold design, process parameters, operator practices, and inspection criteria. Addressing symptoms without understanding root causes leads to recurring issues, higher scrap rates, and delayed launches.
A systematic quality approach shifts the focus from “fixing defects after they occur” to “preventing defects before they happen.” This requires clear responsibilities, documented procedures, and data-driven decision-making across all stages of the product lifecycle.
The foundation of a strong quality system is built before the first mold is cut. Design for Manufacture (DFM) reviews help identify features that are likely to cause molding difficulties, such as abrupt wall thickness changes, insufficient draft, problematic parting lines, or unrealistic tolerance requirements.
During DFM, engineering and quality teams should also conduct a basic risk assessment. Questions to consider include: Which dimensions are critical for function or assembly? What are the consequences of leakage, excessive compression set, or dimensional variation? Which features are most sensitive to process variation? Documenting these risks early enables targeted control plans later in the process.
For teams unfamiliar with compression molding constraints, engaging an experienced supplier during DFM can prevent costly redesigns. A useful reference for the underlying process is Silicone Compression Molding: A Complete Process Guide for Engineers.
Once the mold is manufactured, process validation ensures that the molding parameters produce parts that meet design intent consistently. This typically involves a structured trial run where key parameters such as mold temperature, press pressure, cure time, and post-cure conditions are documented and optimized.
Process validation should define a “process window” rather than a single setpoint. For example, specifying mold temperature as 165°C ± 5°C acknowledges real-world variation while ensuring that parts remain within specification. Documenting this window and training operators to work within it is essential for stable production.
Statistical process control (SPC) can be applied to track critical parameters and part measurements over time. Trends in cavity pressure, part weight, or key dimensions can reveal process drift before it results in out-of-spec parts. For more detail on how parameter variations translate into specific defects, see Silicone Rubber Compression Molding: Defects, Quality Control, and Process Optimization.
A quality system must define what to inspect, how to inspect, and what is acceptable. Inspection planning starts with identifying critical-to-quality (CTQ) characteristics: dimensions that affect assembly or function, visual features that impact cosmetic requirements, and performance tests such as compression set or tensile strength.
Acceptance criteria should be realistic for the chosen process and volume. For low-volume programs, applying the same inspection intensity as high-volume mass production may be unnecessarily costly. Instead, teams can use risk-based inspection, focusing more resources on CTQ features and reducing frequency for low-risk characteristics.
Documentation such as inspection reports, first-article inspection (FAI) records, and material certifications should be maintained and made available to customers when required. This is particularly important in regulated industries such as medical and automotive, where traceability and compliance evidence are often mandatory.
Even with strong DFM and process control, defects will occasionally occur. The key is to have a structured approach for defect management and root cause analysis. Common tools include 5-Why analysis, fishbone diagrams, and failure mode and effects analysis (FMEA).
When a defect is detected, the response should follow a clear workflow: contain the issue (e.g. quarantine affected parts), investigate root cause, implement corrective actions, and verify effectiveness. Documenting these steps creates an organizational memory that prevents recurrence in future projects.
It is also important to distinguish between one-off anomalies and systemic issues. A single out-of-spec part may be an isolated incident, while a pattern of similar defects across batches indicates a deeper process or material problem that requires systemic correction.
A quality system is not static; it should evolve based on production data, customer feedback, and lessons learned. Continuous improvement can take many forms: refining DFM guidelines, tightening process windows, updating inspection plans, or investing in better tooling or equipment.
Feedback loops between production, quality, and design teams are critical. For example, if a particular feature consistently requires rework or causes assembly issues, this information should feed back into future design revisions. Similarly, if a material change improves compression set performance without increasing cost, this can be standardized across similar projects.
Over time, these incremental improvements compound into a more robust, efficient, and predictable manufacturing process for silicone rubber compression molding.
Quality strategies must be scaled appropriately to production volume. In high-volume programs, extensive automation, SPC, and large sample sizes are economically justified. In low volume programs, the same level of inspection and documentation may be disproportionately expensive.
For low volume silicone molding, a pragmatic approach is to:
For more context on how to structure low-volume programs and balance cost with quality, refer to Low Volume Silicone Molding: Cost, Lead Time, and Supply Chain Strategy.
A strong quality system also integrates material knowledge with process understanding. Different silicone grades exhibit different shrinkage behavior, cure kinetics, and sensitivity to parameter variation. Quality plans should reflect these differences rather than applying a one-size-fits-all approach.
For example, a medical-grade silicone with tight compression set requirements may need stricter post-cure control and more frequent compression set testing than a general-purpose industrial grade. Similarly, a high-hardness silicone may require different venting and pressure profiles to avoid trapped air and incomplete filling.
For teams looking to deepen their understanding of material selection and its impact on performance, a useful reference is Custom Silicone Rubber Parts: Material Selection and Performance Considerations.
Bringing these concepts together, a practical quality system for silicone rubber compression molding typically includes:
Implementing these elements does not require a large quality department or complex software. Even small organizations can benefit from basic documentation, disciplined execution, and a culture that prioritizes prevention over reaction.
In silicone rubber compression molding, quality is not just about passing inspection; it is about building a system that consistently delivers reliable parts, reduces waste, and supports long-term customer trust. By investing in DFM, process validation, inspection planning, and continuous improvement, companies can turn quality from a cost center into a strategic advantage.
For engineering and quality teams starting this journey, the key is to begin with a few high-impact practices—such as structured DFM, defined process windows, and focused inspection plans—and then expand over time. With a solid quality system in place, silicone molding programs can achieve higher yield, lower total cost, and more predictable delivery across prototype and production stages.
